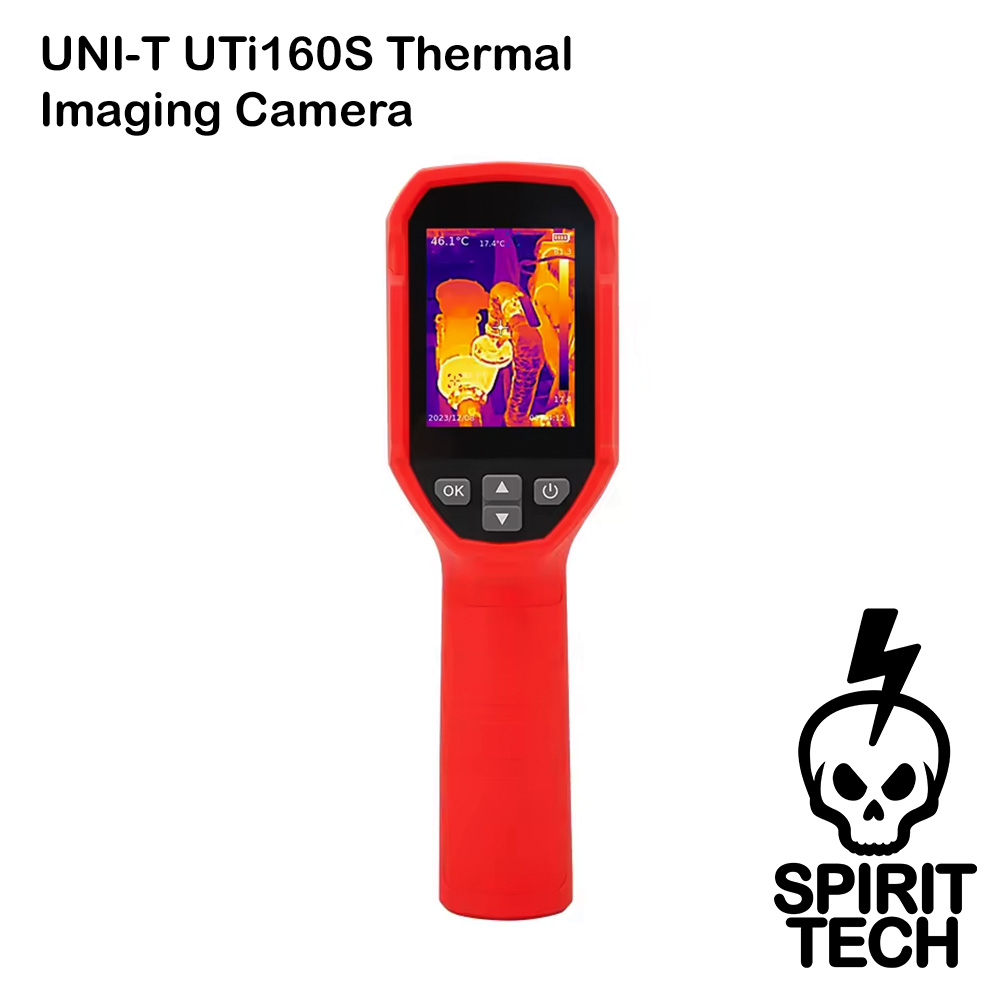

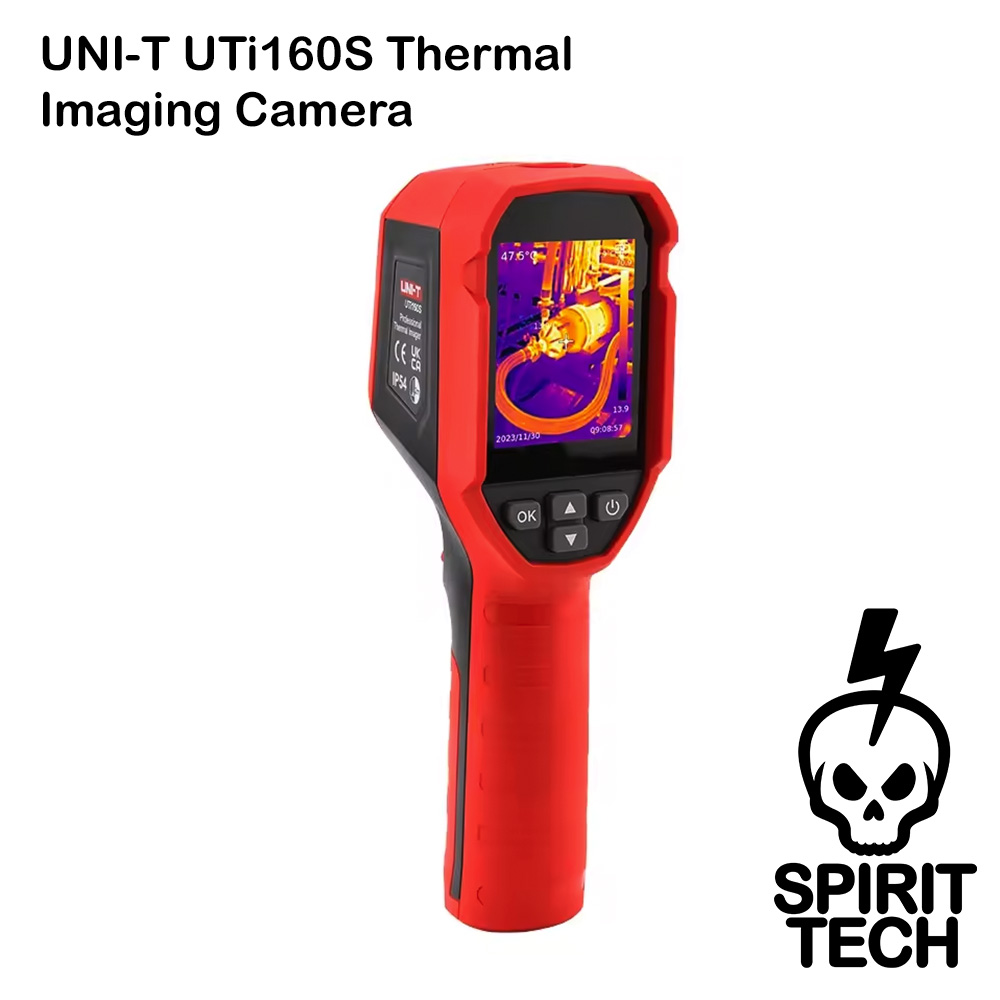

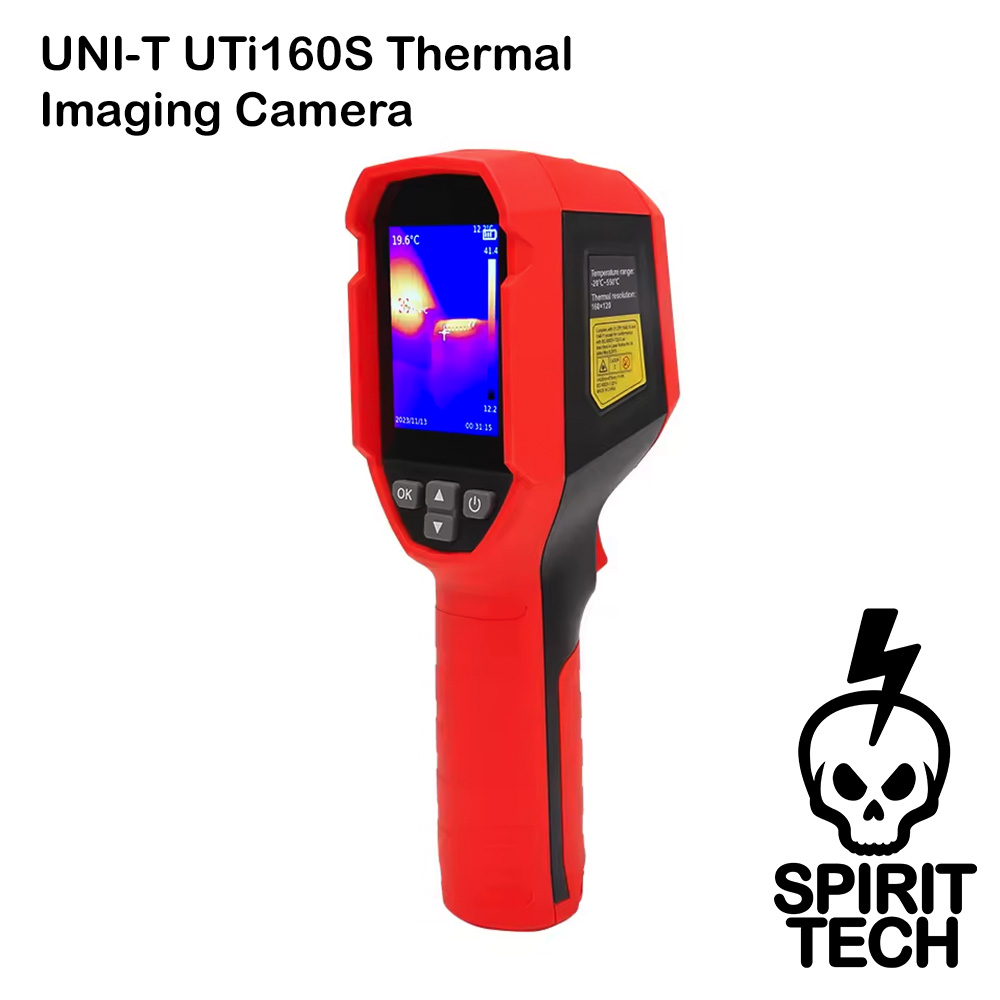

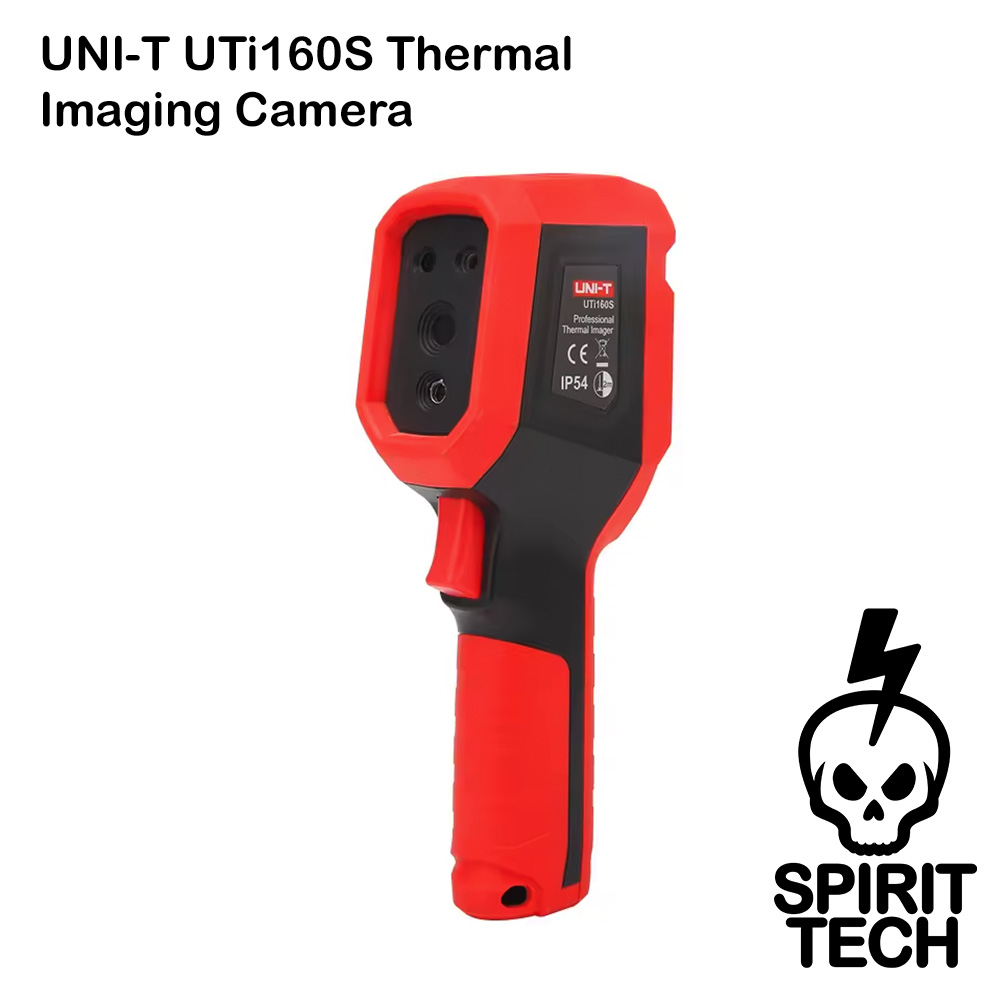

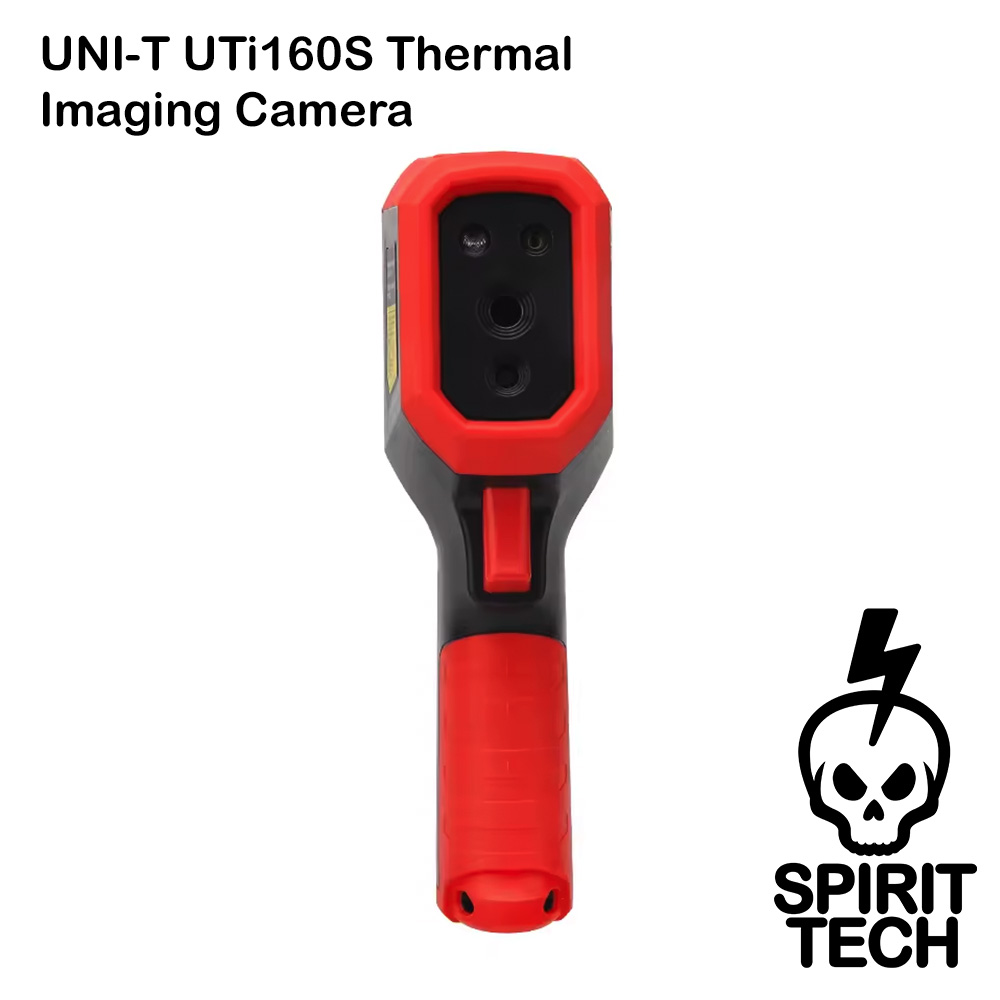

Name: UNI-T UTi160S Thermal Imaging Camera
SKU: UNI-T_UTi160S
Price: 365.00 AUD
Availability: InStock

Product Description

Key Features:

High thermal image resolution of 160 × 120 px, and 25fps high frame rate
Temperature measurement range of -20-550°C
Adjustable emissivity
Measurement units can be displayed in either °C or °F.
Axillary visible-light camera, allowing for mixed image modes
Built-in laser pointer and white LED torch
Base-mounted ¼” screw allows for setting on a tripod
Built-in 2600mAh rechargeable Lithium-ion battery with USB Type-C charging
Rugged and water-resistant design, with an IP54 ingress rating, and up to 2 metre drop resistance.
Four image modes: Thermal, T-Mix Fusion, Picture-in-Picture, Visible Light
Seven colour palettes to choose from

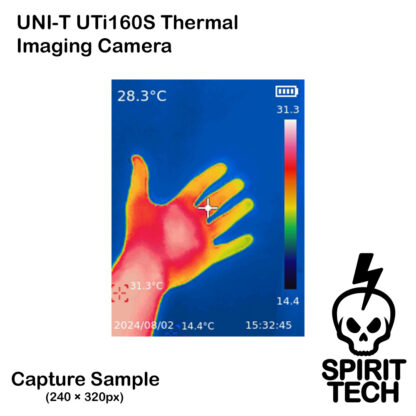

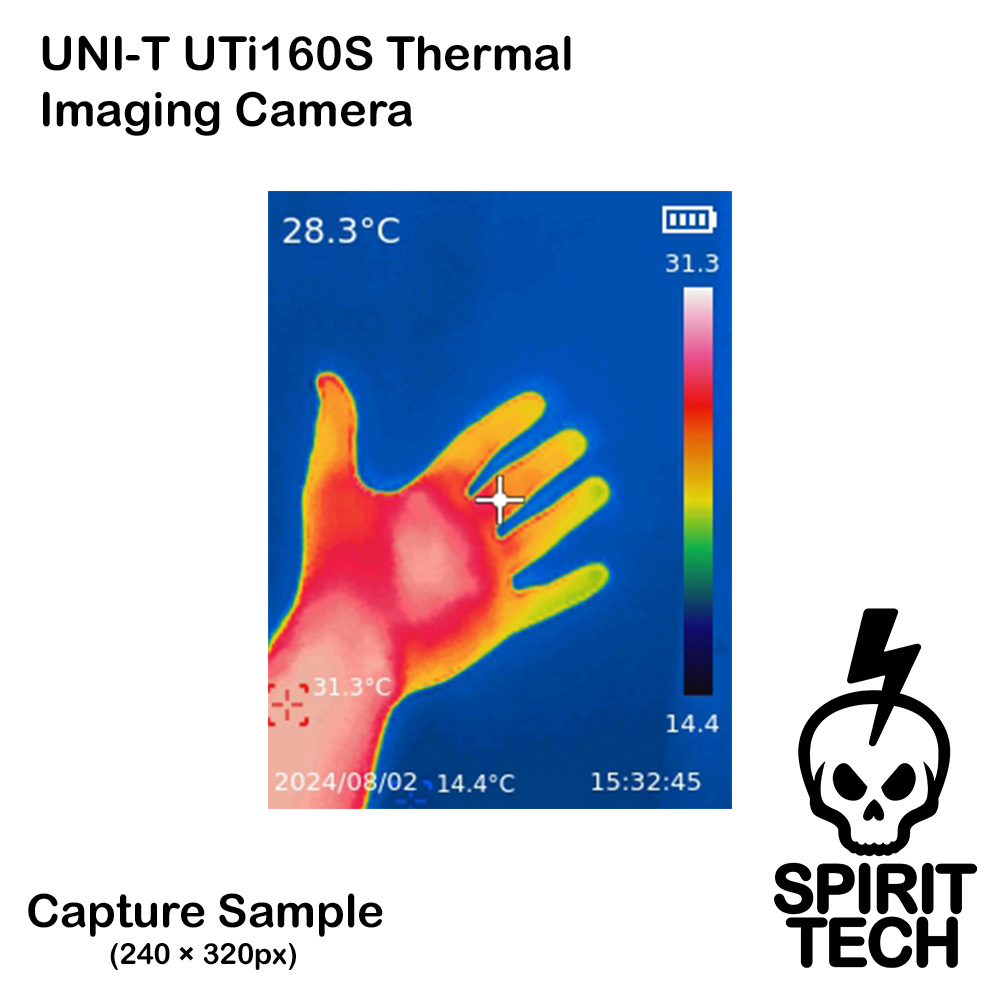

Ability to capture photos to the built-in eMMC storage with the handle trigger (28GB usable = Up to 20,000 photos). Photos are 240 × 320px in size, and mirror screen contents.
Audible and Visual alarm can be set to alert when temperatures in frame are above or below a set range

Kit includes:

Additional Information

Weight	550 g
Dimensions	250 × 150 × 95 mm
Material	Rubber, Plastic
Model	UTi160S
Battery Powered	Yes
Rechargable	Yes
Batteries	Internal, Lithium Ion
Battery Capacity	2600mAh
Batteries Included	Yes
Cable Length	1 Metre
Connector Type	USB Type-C
Emitted Light Colour	Cool White (6000-6500K)
Mount	Standard ¼" Screw
Storage Capacity	(28GB Usable), 32GB
Sensor	Uncooled infrared detector 160×120px
Field of View	40°H × 30°V
Temperature Range	-20 ~ 550°C
Spectral Bandwidth	8 ~ 14 µm
Measuring Resolution	0.1°C
Thermal Image Resolution	160 × 120 px
Visible Light Resolution	640 x 480 px
Display	2.4" TFT
Display Resolution	320 × 240 px
IP Rating	IP54
Drop resistance	2 metre
